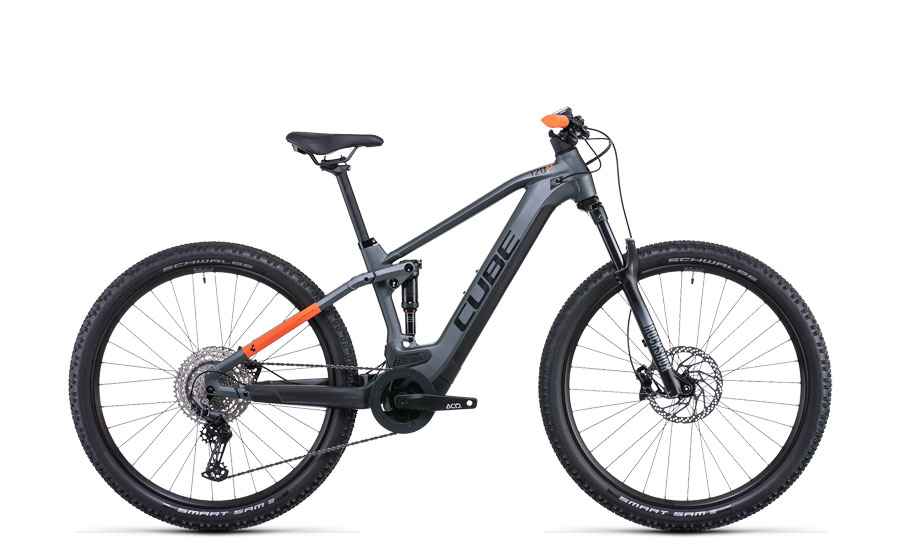

RAHMEN
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points
GRÖSS
Size Split: 27.5: XS (15″), S (17″) // 29: M (18″), L (20″), XL (22″)
GABEL
RockShox Recon Silver RL Air, Tapered, 15x110mm, eMTB Approved, 120mm, Lockout
DÄMPFER
RockShox Deluxe Select, 185x55mm (27.5: 165x45mm), Rebound Adjust, Trunnion Mount
DÄMPFER HARDWARE
Top: 54mm Trunnion Mount, Bottom: 30x8mm
MOTOR
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
AKKU
Bosch PowerTube 625
DISPLAY
Bosch Purion
LADEGERÄT
Bosch 2A
BREMSANLAGE
Shimano BR-MT420, Hydr. Disc Brake (203/203; XS/S:203/180)
SCHALTWERK
Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
SCHALTHEBEL
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
KURBELGARNITUR
ACID E-Crank, 170mm, 38T
KASSETTE
Shimano Deore CS-M6100, 10-51T
KETTE
Shimano CN-M6100
VORDERRAD NABE
Shimano HB-MT400-B, 15mm, Boost, Centerlock
HINTERRAD NABE
Shimano FH-MT410-B, 12mm, Boost, Centerlock
FELGEN
CUBE EX30, 32H, Disc, Tubeless Ready
REIFEN
Schwalbe Smart Sam, Active, 2.6
VORBAU
CUBE Performance Stem E-MTB, 31.8mm
LENKER
Newmen Evolution SL 318.25, 760mm
GRIFFE
Natural Fit All Terrain
SATTELSTÜTZE
CUBE Performance Post, 30.9mm
SATTELKLEMME
CUBE Screwlock Semi Integrated, 34.9mm
SATTEL
Natural Fit Sequence
STEUERSATZ
27.5: ACROS AZX-1032, BlockLock 120°, Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm) // 29: ACROS AZX-1030, Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm)
PEDALE
ACID PP MTB
